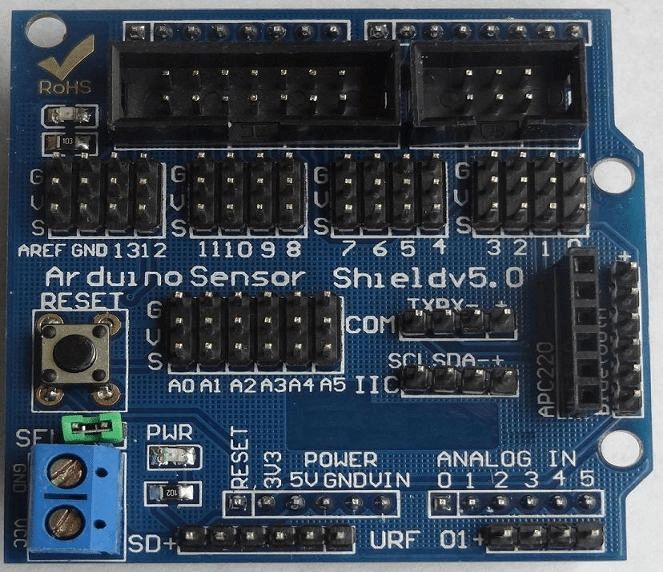

Arduino Sensor Shield V5.0
Arduino Sensor Shield V5.0 with external power support
The Arduino sensor shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers etc. to your Arduino Uno. Each pin has a corresponding VCC and GND pin to connect a module and supply power easily.
External power support
A perfect future is that this shield accepts external power for that high power demanding devices like servos and motors. Next to the power input is a jumper that selects between internal power (from your Arduino) and external power.

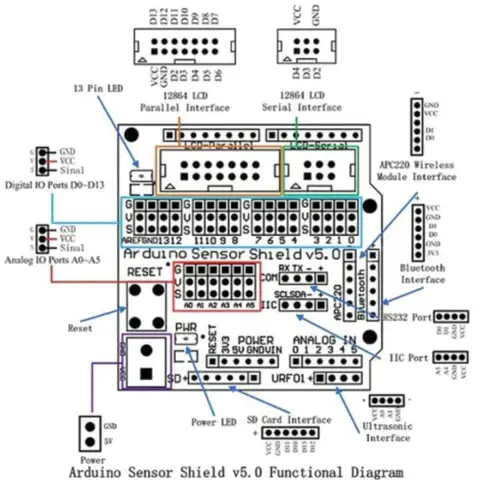

Arduino sensor shield technical specifications
- PIN13 LED Pilot
- Digital IO Ports D0-D13
- Analog IO Ports A0-A5
- Reset Button
- Power In
- Power LED
- LCD Parallel Interface
- LCD Serial Interface
- UART interface
- SD interface
- Bluetooth Interface
