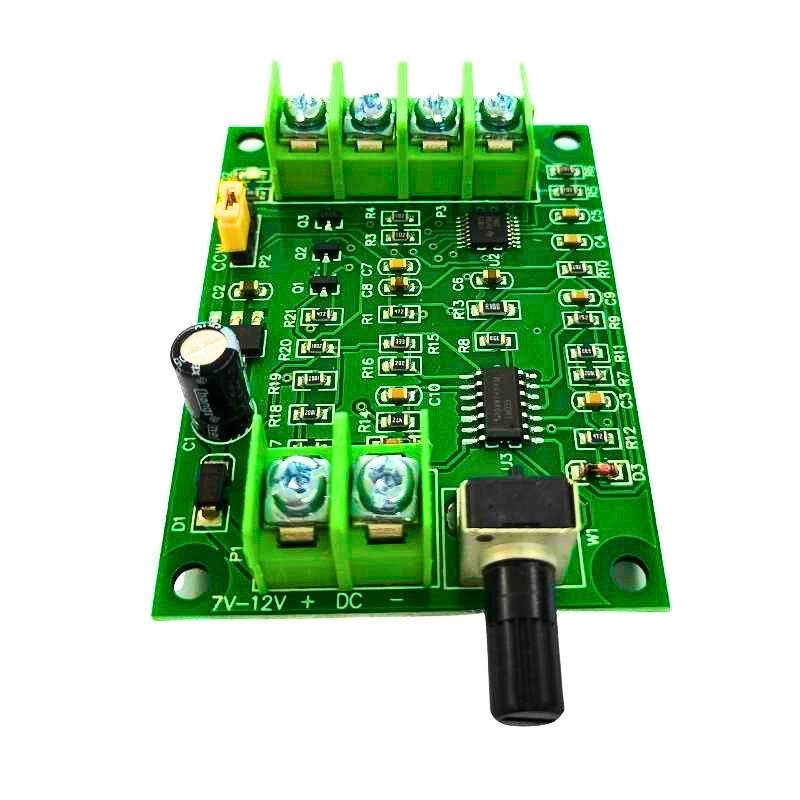

Brushless DC Motor Driver Controller Board 12V
Brushless DC Motor Driver Controller Board 12V
This brushless motor driver is ideal if you want to drive brushless motors at very high speed. Even though the brushless motor driver is speed controlled using a pot on the driver, it can be modified to work with a wireless receiver for remote controlled vehicles if needed. It has the ability to drive a hard disk brushless motor and micro brushless motor with 4 or 3 wires without a hall sensor. This brushless motor driver has an incredible maximum speed of 10,000rpm.
Technical specifications:
| Operating voltage | 7V - 12V |
| Max continuous current | 1.2A |
| Speed adjustment range | 0% - 100% |
| Short circuit protection | Yes |
| Reverse voltage protection | Yes |
| Over current protection | Yes |
| Max speed | 10,000rpm |
| Number of outputs to the motor | 3 or 4 |
Dimensions:
Pin layout:
