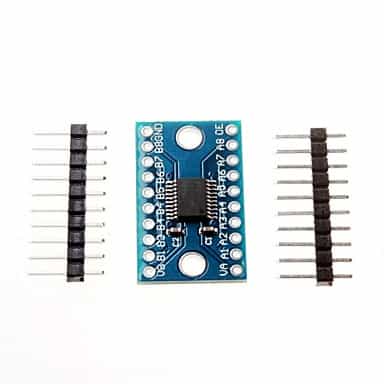

3.3V 5V TXS0108E 8 Channel Logic Level Converter

This combination does not exist.

Component

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

How to Use:

In the case of translating between 3.3V and 5V system:

VCCA connects to 3.3V power supply

VCCB connects to 5V power supply

GND connects to power negative pole respectively, the two power supply should be common-grounded with each other

When Ax has TTL 3.3V input, Bx will get TTL 5V output

When Bx has TTL 5V input, Ax will get TTL 3.3V output

NO direction control required

Features:

8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
Voltage level: 1.8V-6V
Dimension: 21mm x 15mm
