COUNTER 4-BIT BINARY DIP16
COUNTER 4-BIT BINARY DIP16
Using these binary counters in logic circuits in combination with logic gates, different output can be generated based on the output from the counter. Because this counter counts in binary and has 4 bits, it is rather quite easy to build a logic circuit to provide the desired output.
Technical specifications:
Max supply voltage | 18V |
Max clock input frequency | 5.5MHz |
Max output current | 6.8mA |

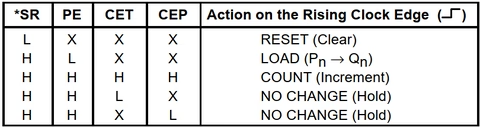

Truth table:
