2SC5200 NPN Transistor
2SC5200 NPN Transistor

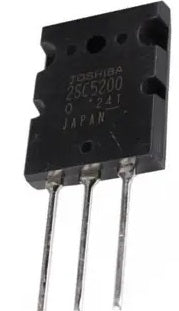

The 2SC5200 NPN Transistor is a high-power semiconductor device commonly used in amplifier designs and audio circuits. With its robust features and reliable performance, it is an ideal choice for various applications requiring high current and voltage capabilities.
Key Features:
- High-power NPN transistor designed for audio frequency amplifiers and AF/RF circuits.
- Offers a maximum DC collector current of 15A, allowing it to handle high current loads.
- Provides a maximum collector-emitter voltage of 230V, ensuring compatibility with various voltage requirements.
- Features a minimum DC current gain of 55, ensuring efficient signal amplification.
- Designed with a single transistor configuration, simplifying circuit design and integration.
- Operates at a maximum temperature of +125 °C, ensuring reliable performance even under demanding conditions.
- Comes in a TO-3PL package, providing easy and secure mounting.
- Suitable for push-pull configuration circuits and can be used as medium power switches.
Pin layout:
