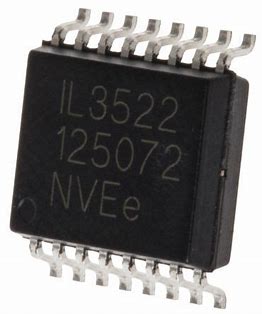

NVE Line Transceiver IL3522E, 16-Pin SOIC
NVE Line Transceiver IL3522E, 16-Pin SOIC
This NVE line transceiver is a galvanically isolated high speed differential bus with the ability to do bidirectional data communication. What makes this NVE line transceiver impressive is that is has good data integrity over long cable lengths at data transfer rates of up to 40Mbps. It also has current limiting to protect your device from short circuits on external circuits, and it has thermal shutdown capabilities to protect your device from over heating.
Technical specifications:
| Supply voltage | 3V - 5V |
| Delivered voltage | 2.3V |
| Data rate | 40Mbps |
| Propagation delay | 20ns |
| ESD protection | 15kV |
| Max digital output current | 5mA |
| High level digital input voltage | 2.4V / 3V |
| High level digital output voltage | 3.3V / 5V |
Pin layout:
Extra resources:
To go to the data sheet, klick here
