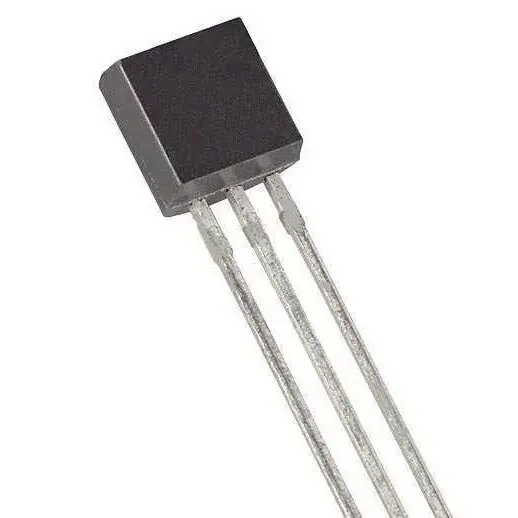

2N4401 NPN Transistor to92 ebc 60V 0A6 (5 Pack)
2N4401 NPN Transistor to92 ebc 60V 0A6 (5 Pack)
NPN transistors are triggered with a positive voltage, which means that when they receive a positive voltage from the logic of the circuit, they will close the circuit between the collector and the emitter pin of the transistor, This makes them ideal to be used as solid-state switches on circuits that require very fast switching or PWM applications, such as PWM motor drivers, H-bridges or small processing circuits.
Technical specifications:
Collector emitter voltage | 40VDC |
Collector base voltage | 60VDC |
Emitter base voltage | 6VDC |
Max collector current | 0.6A |
Max operating temperature | 150°C |

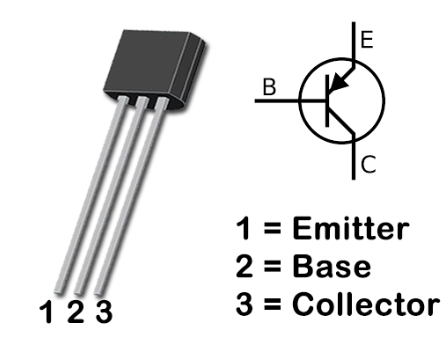

Pin layout:
