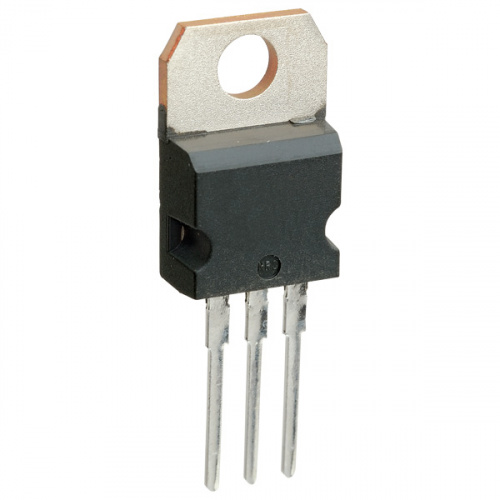

LD1117V3.3 TO-220
LD1117V3.3 TO-220.
LD1117V33 is a three-terminal linear voltage regulator IC with a fixed output voltage of 3.3V which is useful in a wide range of applications.
This is a Linear regulator in a TO-220 footprint making it easy to mount on the heatsink.
Note this regulator has good stable output buds and needs to be kept cool at high current levels.
How does it work? check the link: Voltage regulator
LD1117V3.3 TO-220 Specification:
Output Voltage: 3.3 V
Output Type: Fixed
Package Type: TO-220
Maximum Output Current: 1.3A
Maximum Input Voltage: 15 V
Polarity: Positive
Line Regulation: 6 mV
Load Regulation: 10 mV
Mounting Type: Through Hole
Dimensions: 10.4 x 4.6 x 9.15mm
Output Type: Fixed
Package Type: TO-220
Maximum Output Current: 1.3A
Maximum Input Voltage: 15 V
Polarity: Positive
Line Regulation: 6 mV
Load Regulation: 10 mV
Mounting Type: Through Hole
Dimensions: 10.4 x 4.6 x 9.15mm
