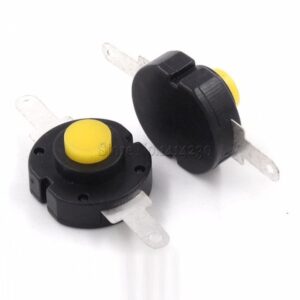

Self Latching Switch Yellow Round (2 pack)
Self latching switch yellow round (2 pcs).
These units have a yellow button and a black chassis. When pressed, the circuit is on; press again, the circuit is off. These type of switches are often found in torches and other lighting products.

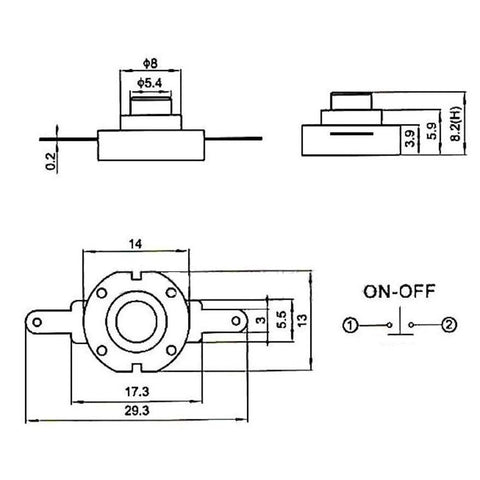

Self latching switch - yellow round spec
- Operating temperature range: -10 ~ 60 ℃
- Switch pressure: AC24V (50Hz) 1min
- Switch rated load: DC 12V 0.5A
- Switch life: ≥ 50000 Cycles
- Action: 100-300gf
- Switch insulation resistance: ≥100MΩ
- Base diameter: 14mm
- Base thickness: 4mm
- Button diameter: 5.4mm
- Overall height: about 8.2m
Specs:
Shipping list:
2 x self latching switch
