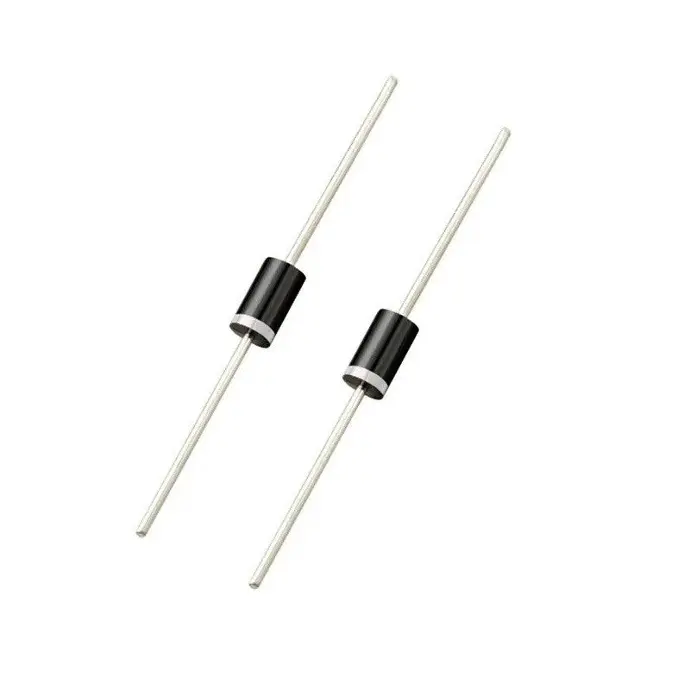

1N5822 Schottky Reflector Diode (10 Pack)
1N5822 Schottky Reflector Diode
Schottky diodes are designed for switch-mode power supplies and high-frequency DC-to-DC converters.
The 1N5819 is a Schottky diode with a low forward voltage drop and high switching speed. It is commonly used in high-frequency applications like Inverters, DC-DC converters, etc.
Features:
Fast switching
Low forward voltage drop
Small conduction loss
Very low switching loss
Technical specifications:
Mounting Type | Through Hole |
Package Type | DO-27 |
Maximum Continuous Forward Current | 3A |
Peak Reverse Repetitive Voltage | 40V |
Diode Configuration | Single |
Rectifier Type | Schottky Rectifier |
Diode Type | Schottky |
Pin Count | 2 |
Maximum Forward Voltage Drop | 600mV |
Number of Elements per Chip | 1 |
Diode Technology | Schottky Barrier |
Diameter | 5.6mm |
Peak Non-Repetitive Forward Surge Current | 80A |
