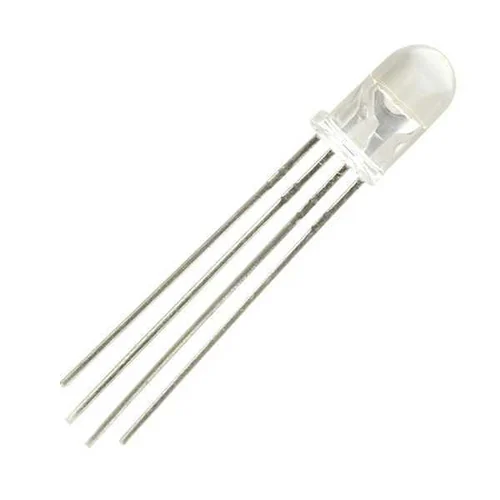

5mm RGB LED Common Anode (10 Pack)
5mm RGB LED Common Anode
This is a 5mm RGB LED (Red Green Blue) with four pins. Triple output one for each color with a common Anode. This LED can be used for three status indicators or pulse width modulation by mixing the different colors at different brightness's you could get 257x257x257 different colors which is 16,974,593 colors to choose from!
The price is per RGB LED.
5mm RGB LED Common Anode specification.
- Pin length: >20mm
- Diameter: 5mm
- Emitting Color: RGB
RED
- Brightness: 1000—1200MCD
- Voltage Range: 1.8 — 2.0V
- Wavelength: 630—640nm
Green
- Brightness: 3000—500MCD
- Voltage Range: 3.2 — 3.4V
- Wavelength: 515—525nm
Blue
- Brightness: 2000—300MCD
- Voltage Range: 3.2 — 3.4V
- Wavelength: 465—475nm
