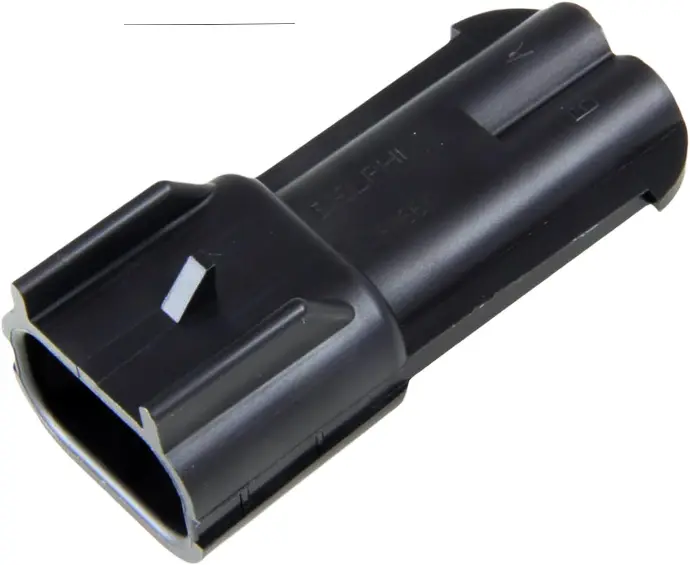

Delphi 2 way Female
Weather-Pack sealed female automotive connector assemblies with triple ribbed silicone connectors and cavity seals designed to withstand extreme temperatures, chemicals, and fluids. The terminals of these Weather-Pack automotive connectors are tin-plated and have special core wings that allow crimp-only connections so solder is not needed, the dual tangs on the terminals help prevent backing out. These Weather-Pack automotive connectors have positive locking indexing to prevent mismating.
Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicles and marine applications. For mating connectors, crimp terminals, and cable seals please see the table.
| Type | Automotive Connector |
| Number of Contacts | 2 |
| Gender | Female |
| Number of Rows | 1 |
| Current Rating | 20A |
| Mounting Type | Cable Mount |
| Series | Weather-Pack |
| Color | Black |
| Termination Method | Crimp |
| Height | 20.8mm |
| Width | 21.5mm |
| Housing Material | PA |
| Depth | 40.8mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Water Proof | Yes |
| Dust Proof | Yes |
