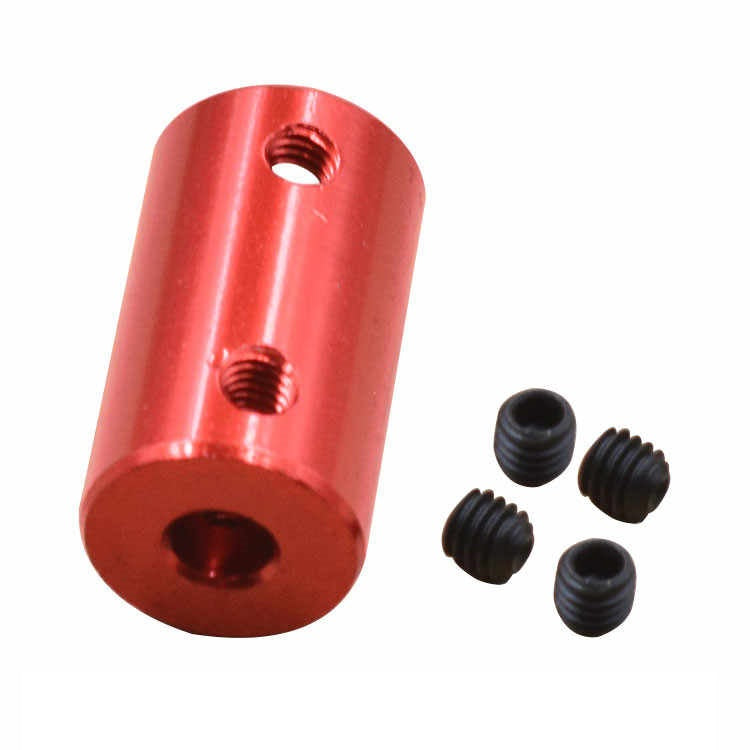

6mm -10mm Red Aluminum Alloy Coupling
These shaft couplers are widely utilized in various applications like blowers, 3D printers, DIY robots, CNC machines, and stepper motors. They function similarly to rigid clamp couplings, securely holding bearings and sprockets on the shaft. They are commonly used in motor and gearbox assemblies.
Featuring a top tight design with 2/4 screws, these rigid couplings effectively secure the shaft, providing high torque, rigidity, low inertia, and exceptional sensitivity. It's important to note that the rigid type does not allow eccentricity and requires proper adjustment during use.
The single piece set screw clamp design simplifies the setup process, allowing for easy installation of items on the shaft while providing control over the coupling's holding capacity.
Connection Bore Diameter: 6mm to 10mm, Total Length: 25mm, Outside Diameter: 14mm with M4 Grub Screws.
Specification
Diameter: 14mm
Length: 25mm
Top thread: Use 4 M4 screws to fix the screw holes on the side.
Material: Aluminum alloy (red oxidation treatment)
Model: 6-10 means that one end is connected to a 6mm shaft, and the other end is connected to an 10mm shaft
